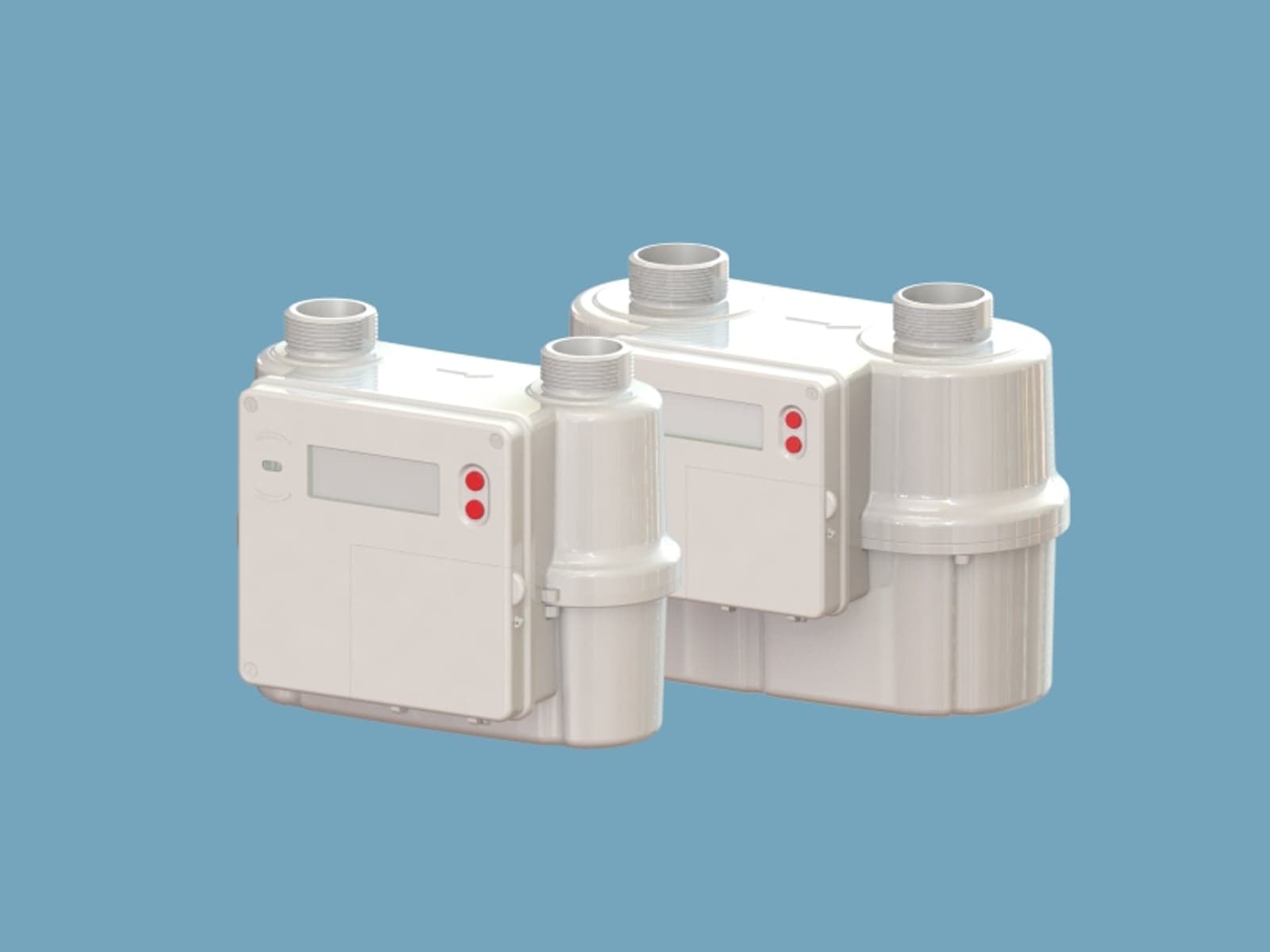

Commercial ultrasonic gas meter

USM Series Ultrasonic Gas Flow Meter is a type of electronic meter that adopts ultrasonic transit time difference method to measure the medium flow rate, which is suitable for natural gas flow measurement.

Performance characteristics

• Small size, stable measuring performance
  Simple structure, small volume, no moving parts, no mechanical wear, and no magnetic field effects
• High sensitivity
  Instantaneous flow monitoring to deal with various technical gas theft methods;
  Real-time temperature and pressure corrections, effectively improving supply-demand imbalance
• High security
  Prevents minor leaks, and perform valve closing protection based on preset plan; Features including reverse installation alarm valve shutdown, abnormal large flow management, and illegal removal behavior monitoring function
• Long life and maintenance-free
  No moving parts, long lifetime, no need for factory repairs, and convenient maintenance
• Strong expandability
  Fully electronic structure, easily expandable for additional functions, such as remote charging, valve control, alarms, etc

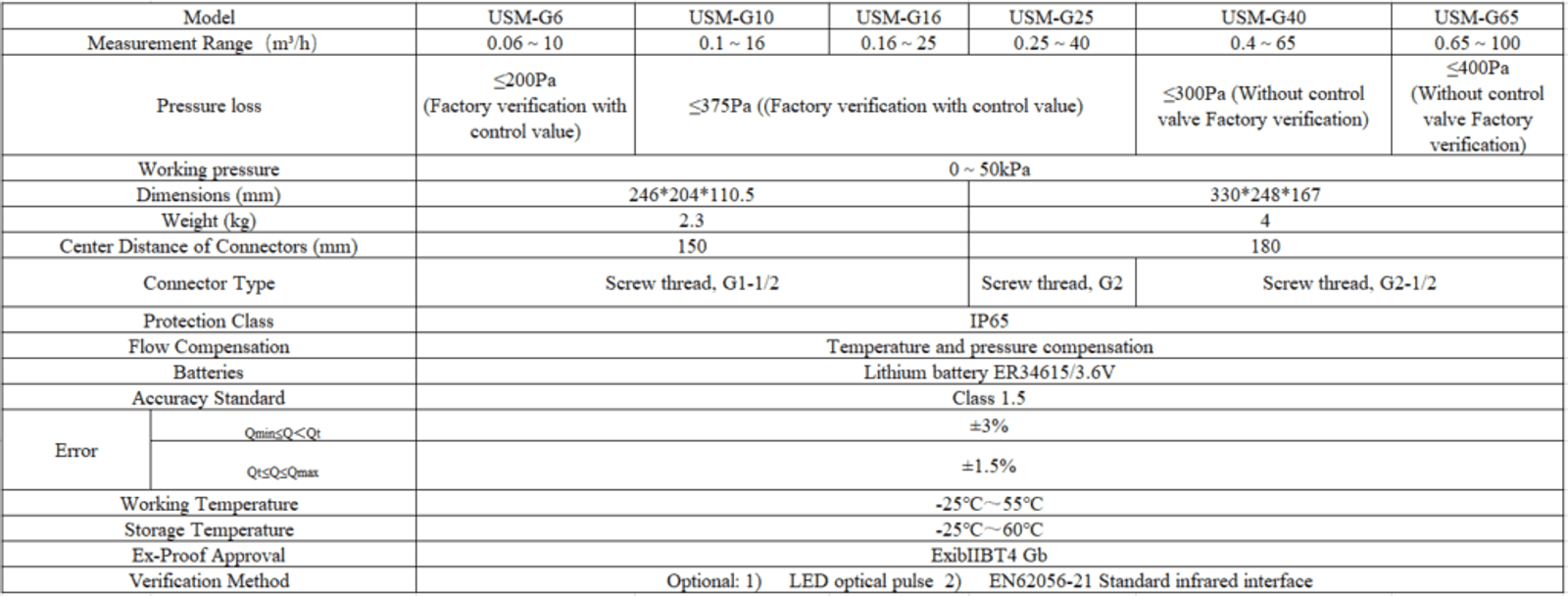

Specifications

Read more news from Cubic

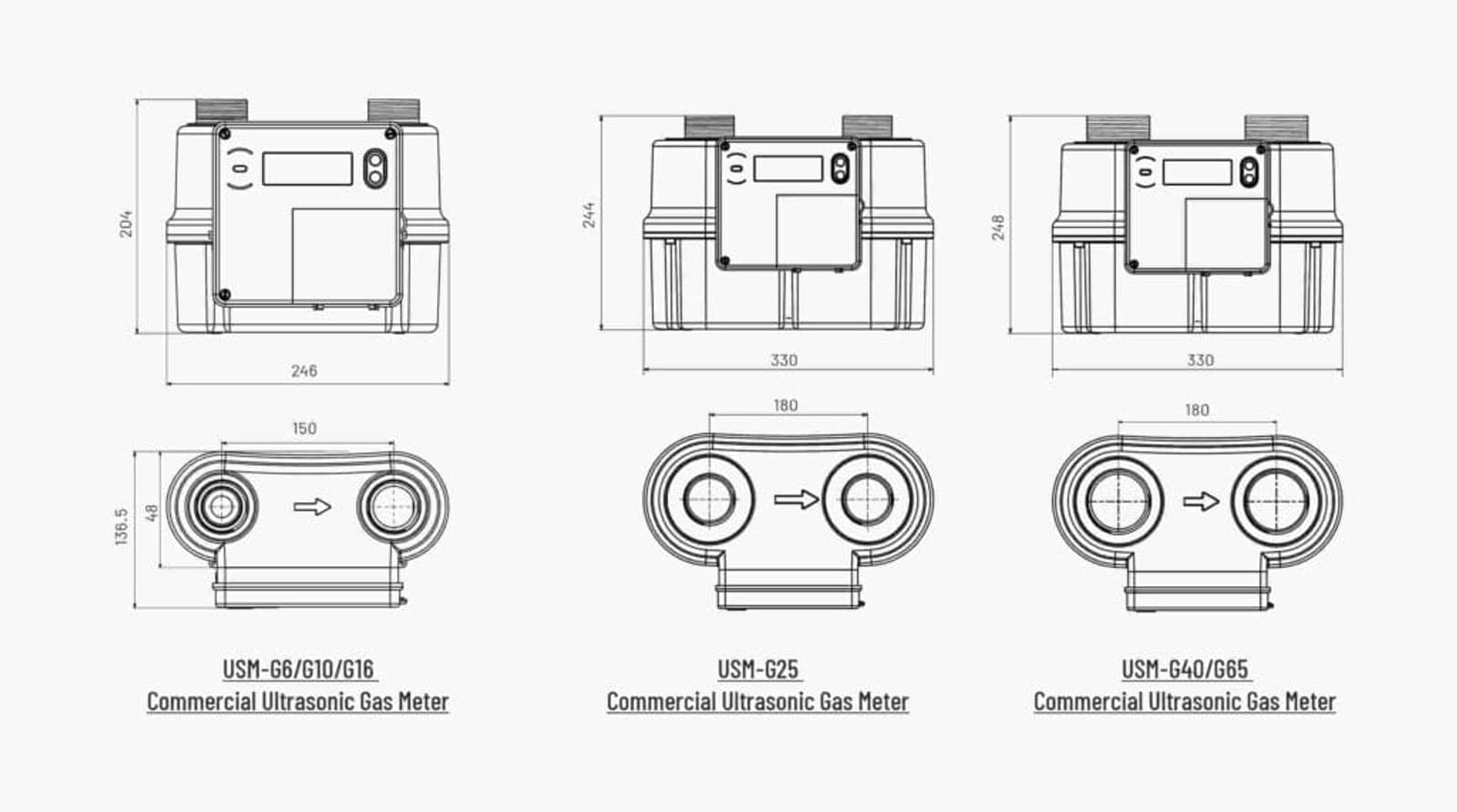

Dimension (mm)
